PH7-3156(PH3-1046) RG59, RG6 COMPRESSION CONNECTOR

PH7-3156(PH3-1046) RG59, RG6  COMPRESSION  CONNECTOR

Short Description:

Specifications connector f compressed Color: Nickel Materials: New Brass Size: for RG6 coaxial cable sealed permanent High performance Black Nickel connector f compressed for Cable RG6 Universal so it works with all RG-6 Cable (60% thru Quad) Compression Connector with Dual O-Rings All Brass Construction Bag of 50 Meets SCTE Specifications Product Specifications Bandwidth:0MHz to 3GHz Impedance:75Ohms Return Loss:Minimum -30 dB to 3GHz Insertion Loss: LESS THAN 10db to 3GHz Shielding Ef...


  • FOB Price: unknow
  • Min.Order Quantity: 5000pcs
  • Supply Ability: 500000pcs/month
  • Port: Shanghai
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Specifications

    connector f compressed
    Color: Nickel
    Materials: New Brass
    Size: for RG6 coaxial cable
    sealed permanent

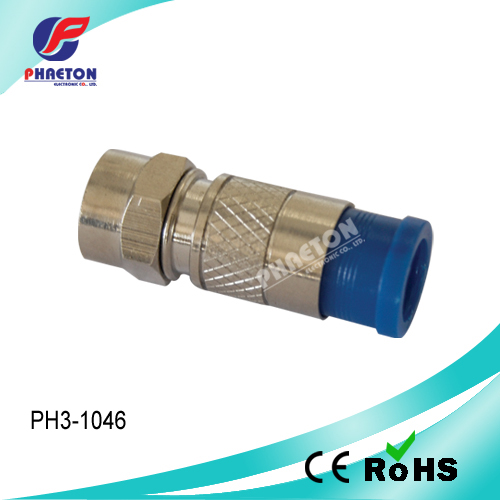

    High performance Black Nickel connector f compressed for Cable RG6

    • Universal so it works with all RG-6 Cable (60% thru Quad)
    • Compression Connector with Dual O-Rings
    • All Brass Construction
    • Bag of 50
    • Meets SCTE Specifications

    Product Specifications

    Bandwidth:0MHz to 3GHz

    Impedance:75Ohms

    Return Loss:Minimum -30 dB to 3GHz

    Insertion Loss: LESS THAN 10db to 3GHz

    Shielding Effectiveness:Ehanced by 25dB

    Operating Temperature:-40° F to +140°F(-40°C to +60°C)

    Cable Retention:45lbs minimum

    Meets or exceeds all SCTE Specifications

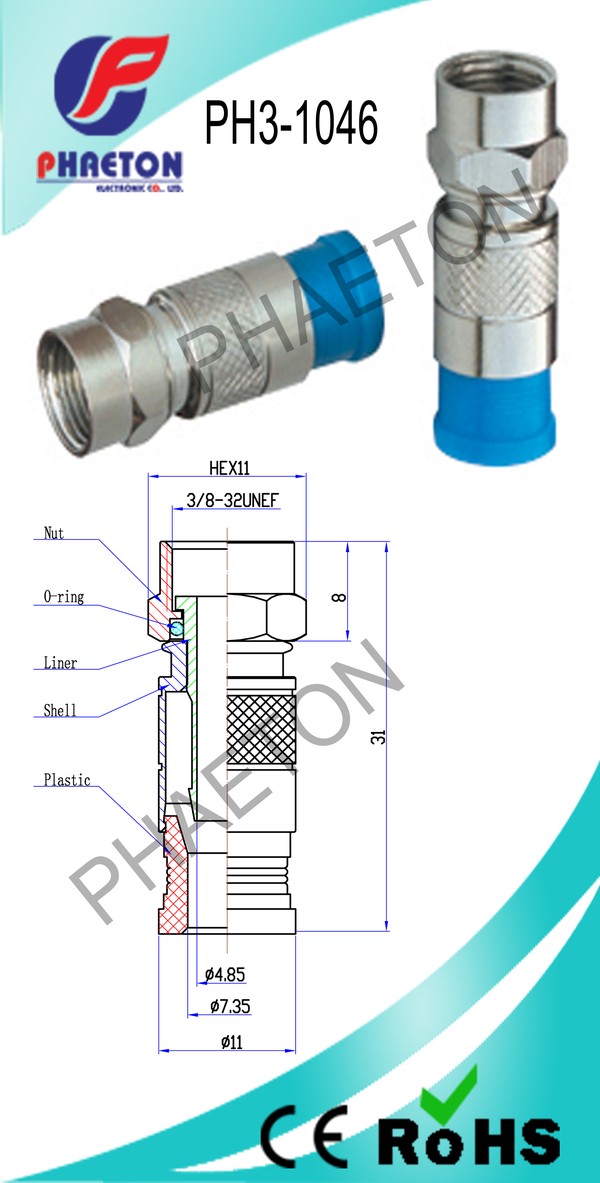

    PH3-1046-2PH3-1046-1PH3-1046pack-1
