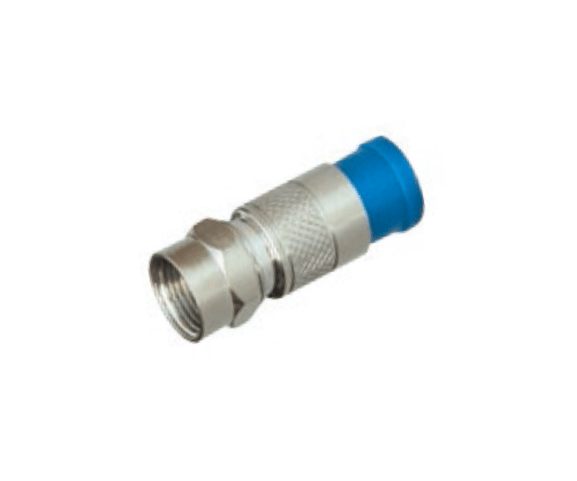

PH7-3156(PH3-1046) RG59, RG6 COMPRESSION CONNECTOR

PH7-3156(PH3-1046) RG59, RG6  COMPRESSION  CONNECTOR

Кароткае апісанне:

Specifications connector f compressed Color: Nickel Materials: New Brass Size: for RG6 coaxial cable sealed permanent High performance Black Nickel connector f compressed for Cable RG6 Universal so it works with all RG-6 Cable (60% thru Quad) Compression Connector with Dual O-Rings All Brass Construction Bag of 50 Meets SCTE Specifications Product Specifications Bandwidth:0MHz to 3GHz Impedance:75Ohms Return Loss:Minimum -30 dB to 3GHz Insertion Loss: LESS THAN 10db to 3GHz Shielding Ef...


  • FOB Кошт: Unknow
  • Min.Order Колькасць: 5000шт
  • Магчымасць пастаўкі: 500000pcs / месяц
  • Порт: Шанхай
  • Тэрміны кампенсацыі: L / C, D / A, D / P, T / T
  • Падрабязнасці па прадукту

    пазнакі тавару

    Specifications

    connector f compressed
    Color: Nickel
    Materials: New Brass
    Size: for RG6 coaxial cable
    sealed permanent

    High performance Black Nickel connector f compressed for Cable RG6

    • Universal so it works with all RG-6 Cable (60% thru Quad)
    • Compression Connector with Dual O-Rings
    • All Brass Construction
    • Bag of 50
    • Meets SCTE Specifications

    Product Specifications

    Bandwidth:0MHz to 3GHz

    Impedance:75Ohms

    Return Loss:Minimum -30 dB to 3GHz

    Insertion Loss: LESS THAN 10db to 3GHz

    Shielding Effectiveness:Ehanced by 25dB

    Operating Temperature:-40° F to +140°F(-40°C to +60°C)

    Cable Retention:45lbs minimum

    Meets or exceeds all SCTE Specifications

    PH3-1046-2PH3-1046-1PH3-1046pack-1
